The thermostatic spout testing machine is suitable for testing the sensitivity, fidelity, temperature stability, safety and outlet temperature of thermostatic spout and thermostatic showers. Implement the national standards QB/T 5418-2019, QB/T 2806-2017, EU standard EN1111-2017, American standard ASSE1016-2017.

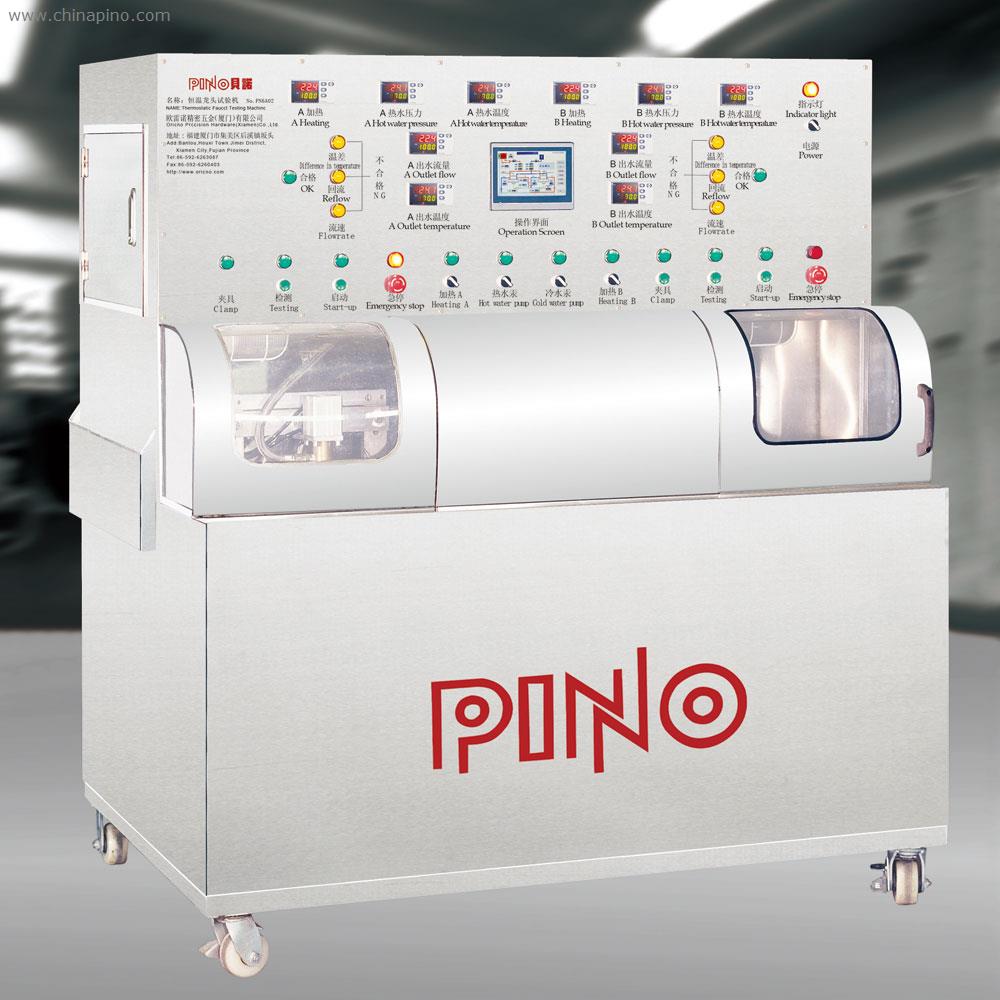

PN6A02 thermostatic valve testing machine

Technical parameter(comply with European standard)：

1. Controlled by PLC with AI artificial intelligence and industrial control tablet

2. Running : gas transmission & motor & frequency-varying water pump and electric valve.

3. Voltage: AC380V, 3 phases 5 lines , 50HZ

4. Total power: 100KW.

5. Refrigeration system: compressor 5HP, Air-cooled all-in-one machine 3P.

6. Working air pressure: 0.5～0.7MPa.

7. The constant pressure of cold and hot water supply can be stably switched : 0～10PMa±0.01MPa

8. Water supply flow: 0～50L/min.

9. Two stations (Simultaneous testing that is not completely independent).

10. Leakage detection of hot and cold compartments.

11. Water outlet temperature and flow detection.

12. Automatic ventilation and automatic remove residual water from the product after testing.

13. Test data generation graph, report output archive, save and print.

14. AI artificial intelligence control system: the hot and cold water supply tank is kept within ±1°C after the set temperature value.

15. Intelligent control system for changing the water supply temperature: during the test, the pressure and flow rate are kept constant, and the temperature is smoothly changed to the standard specified time.

16. Safety test (hot and cold water supply) automatic collection and analysis to detect the amount of water at the outlet: quickly and accurately determine the amount of water within 5S and the total water volume within 30S.

17. Sensitivity, fidelity test fixture: according to customer requirement, the structure configuration can be adjusted up and down, front and back, and angles.
